The GIGABYTE X58A-OC is the world’s first motherboard designed specifically for overclocking. Bringing several new technologies together for the first time in one motherboard, the GIGABYTE X58A-OC has all the features overclockers have been asking for, making it easier than ever to take down world records.
Powered by the Intel^® X58 chipset, and supporting high-end Intel^® Core™ i7 CPUs including the record-breaking Intel^® Core™ i7-990X Processor Extreme Edition, the GIGABYTE X58A-OC is able to push past performance boundaries maxed out by other platforms by offering native 4-way graphics support (CrossfireX) and triple channel DDR3 memory support. It’s unique layout design further increases performance potential by following the shortest pathways between key components such as the memory and CPU (for minimal latency), wider CPU zone and low profile components for easier extreme cooling insulation, memory slot spacing that doesn’t interfere with graphics card installation, and a grand total of 7 four-pin Smart Fan controllers that allow overclockers to precisely adjust fan speed and control system temperature, just to name a few…

The GIGABYTE X58A-OC features a new VRM design called OC-VRM, which includes a combination of highly conductive POScaps, 50A rated MPFC (Max Power Ferrite Core) Chokes, and Driver-MOSFETs, which combined, are able to deliver higher current to the CPU, with better efficiency and lower temperature. OC-VRM also allows users to overclock the PWM frequency via an onboard switch, for real-time adjustment. When the CPU needs maximum power, users can raise the PWM frequency in order to deliver more current through this unique POScap and MPFC Choke design. In addition, GIGABYTE has specially chosen unobtrusive components and carefully designed their layout to make it easier and quicker than ever for extreme overclockers to insulate their boards.	Quicker and Easier to Insulate
		Output up to 1200W IN-PUT up to 1500W 2x 8Pin CPU Power Connectors   Driver Mosfet   Powerful: Low temp Single Choke Up to 50A   Fast: Durable Entire Board with Poscaps   Intersil Overclocking PWM   Quick: Real-time Overclock PWM frequency to 600K/800K/1000K



OC-Touch enables overclockers to quickly and easily get the best performance from their system. With onboard OC-Touch buttons, users are able to manually raise and lower the CPU ratio, change BCLK settings, and even change BCLK stepping to either 1MHz or 0.3MHz. These changes can be made at any time whether in the BIOS, DOS, or Windows and in real-time without the need for rebooting, so that users can quickly fine-tune to find their CPU’s maximum frequency. The onboard 4G Ready button allows novice overclockers to automatically reach 4GHz, while advanced users can use it to get to 4GHz before continuing with OC-Touch to quickly find their CPU’s best margin. Onboard voltage measurement modules are also included to help users to conveniently monitor component voltages.
Start Engine     BCLK Up              Restart CPU Ratio up     CPU Ratio Down   BCLK Down DeBug LED         Onboard Voltage Measurement Module Users can conveniently probe with a power meter to measure component voltages.   4G Ready button The 4G Ready button automatically overclocks the CPU to 4GHz on the next system boot up.   OC Gear 1MHz or 0.3MHz BCLK steppings.



Specifications    [ Edit | History ] - by David_W @May 09, 2011

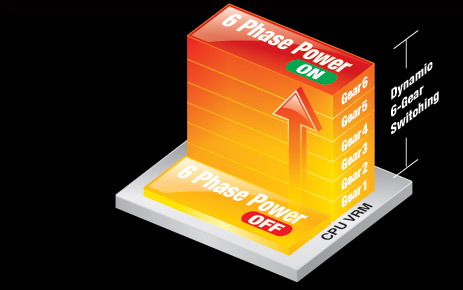

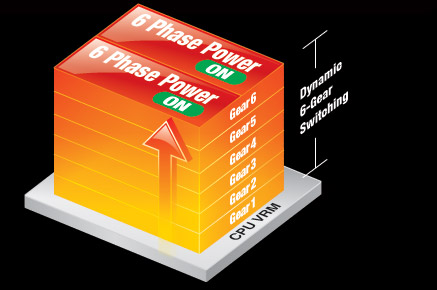

Dual CPU Power Imagine a workstation class redundant (duplicated) power design on a desktop motherboard! GIGABYTE’s proprietary Dual Power Switching Technology allows CPU VRM power phases to split* evenly into 2 sets of power engines that operate in tandem. This allows 1 set of power phases to rest while the other is active as opposed to a traditional power design where all the power phases are always active. So GIGABYTE Dual CPU Power effectively halves the amount of work done by each set of power phases to significantly increase motherboard durability and reliability.   Power Phase Boost with Multi-Gear Switching GIGABYTE X58A-OC motherboard also features Power Phase Boost with Multi-Gear Switching.** This operates both when Dual Power Switching is active and when it is not. Normal Loading 6 Power Phases are active with Dynamic 6-Gear Switching Heavy Loading Full 12 Power Phases are active with Dynamic 6-Gear Switching **Multi-Gear Switching requires system to enable GIGABYTE Dynamic Energy Saver program. The number of power phases for each Gear switching may vary between models.                  2x Copper PCB Benefits of 2x Copper PCB .Cooler than traditional motherboards .Enhanced durability .Improved energy efficiency .Greater margins for overclocking  2x Copper PCB Traditional     PCB layer cross-section image, magnified 200x      Lower Temperature Better Overclocking Better Power Effciency 2x Lower Impedance Lower EMI Better ESD Protection PCB (Printed Circuit Board) 2x copper PCB = 2 oz copper PCB = weight of copper layer 30.48 cm x 30.48 cm (1 square foot) PCB is 56.7 g (2 oz)   333 Onboard Acceleration GIGABYTE 333 Onboard Acceleration motherboards set a new standard in high performance computing by incorporating all the industry's latest high-speed data transfer technologies. Proving once again to be the true Leader in Motherboard Innovation, the GIGABYTE 333 Onboard Acceleration delivers unparallel performance with onboard integration of the latest SuperSpeed USB 3.0 technologies, SATA Revision 3.0 (6Gbps) technologies, and an unprecedented 3x USB power boost on all USB ports for the most power hungry USB devices.   USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.   SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.   3x USB power is a maximum theoretical value. Actual performance may vary by system configuration.   On/Off Charge Technology GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger. Quick Charge Your iPhone Anytime Quick Charge for iPhone / iPad / iPod touch   PC Power   Quick Charge Working Standby Suspend to RAM Suspend to DISK Shutdown Charge time (Lower is Better) (S0) (S1) (S3) (S4) (S5)   GIGABYTE ON/OFF Charge YES YES YES YES* YES*   Up to 40% Faster   Traditional Design No No No No No   On/Off Charge USB Port       *Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non ON/OFF Charge USB ports. Charging results may vary by model.
